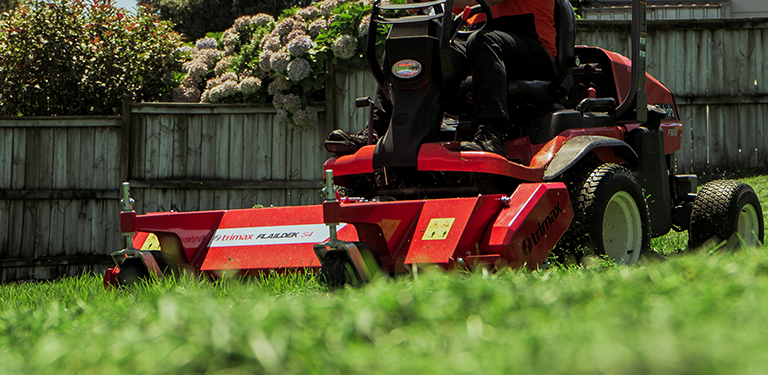

Flaildek S4
Combining proven flail performance with reduced maintenance and greater versatility, FlailDek S4 is built for full-time commercial use.
Built Tough for the Most Challenging Conditions.
Trimax FlailDek S4 builds on field-proven reliability while introducing new features for reduced maintenance and wider versatility, providing maximum value in full-time commercial applications.

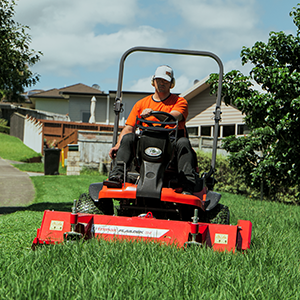

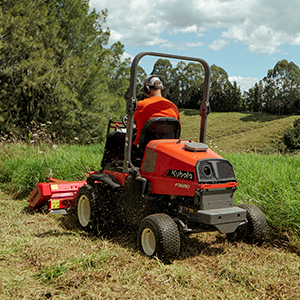

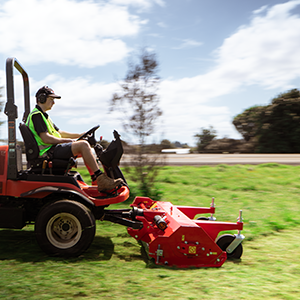

Designed as a high-performance alternative to standard factory-fitted flail mowing attachments found on John Deere, Kubota, Iseki, New Holland, Shibaura, Hustler, and other out-front tractors, FlailDek S4 gives direct line of sight to the cutting zone, providing safety and confidence.
Optional Y flails and scarifying knives alongside the ability to set a negative height of cut add scarifying capability for year-round use, while a configurable gearbox mount aligns cleanly with multiple power units. One machine covers more ground conditions, without the cost of running separate equipment.
Talk to us today about how the FlailDek FX can keep you moving in the most demanding environments.
FlailDek S4 Features.
The below features come as standard on all FlailDek S4 mowers:
Maintenance-Free Roller Bearings
Roller bearings sealed for life mean no daily greasing and less routine servicing.
Double Helical Rotor
A spiral orientation cuts more efficiency, drawing less hp from the tractor while running quieter.

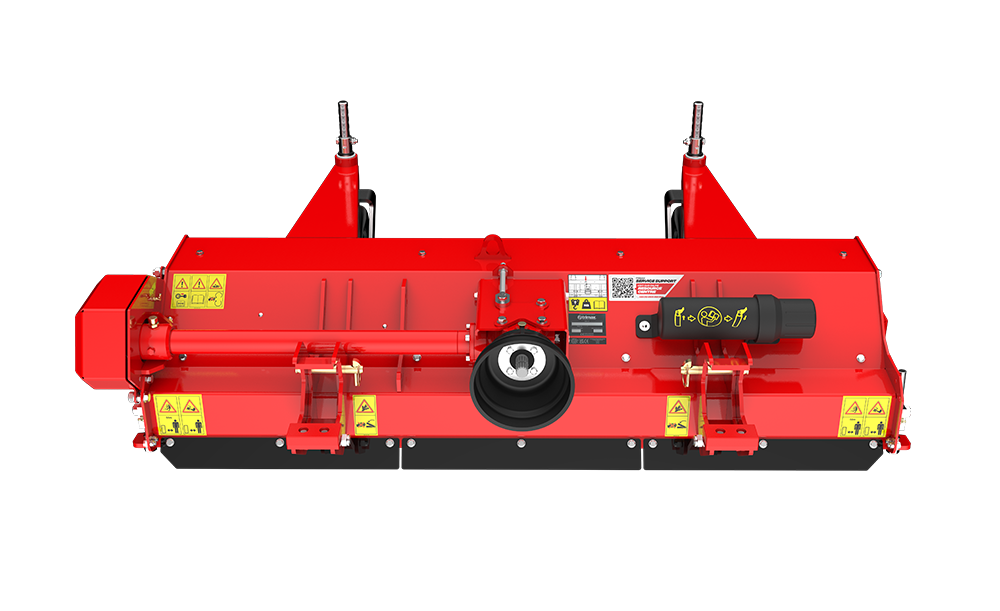

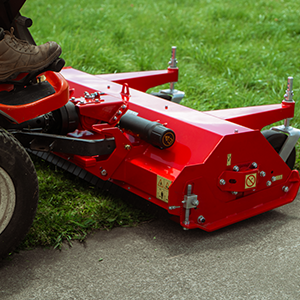

Configurable Gearbox Mount
Two pre-set gearbox positions allow better alignment with specific power units for a cleaner fit and easier servicing.
Reinforced Link Arms
Link arms have been redesigned to be stronger and bring the centre of mass closer to the drive unit for increased operator comfort.
Replaceable Internal Liner
A bolted 2mm replaceable internal liner reduces noise and increases mower life.

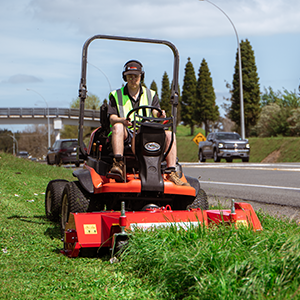

SAFE CLIPPING DISPERSION
Expels debris in a downward direction behind the mower for safe mowing in busy public spaces.

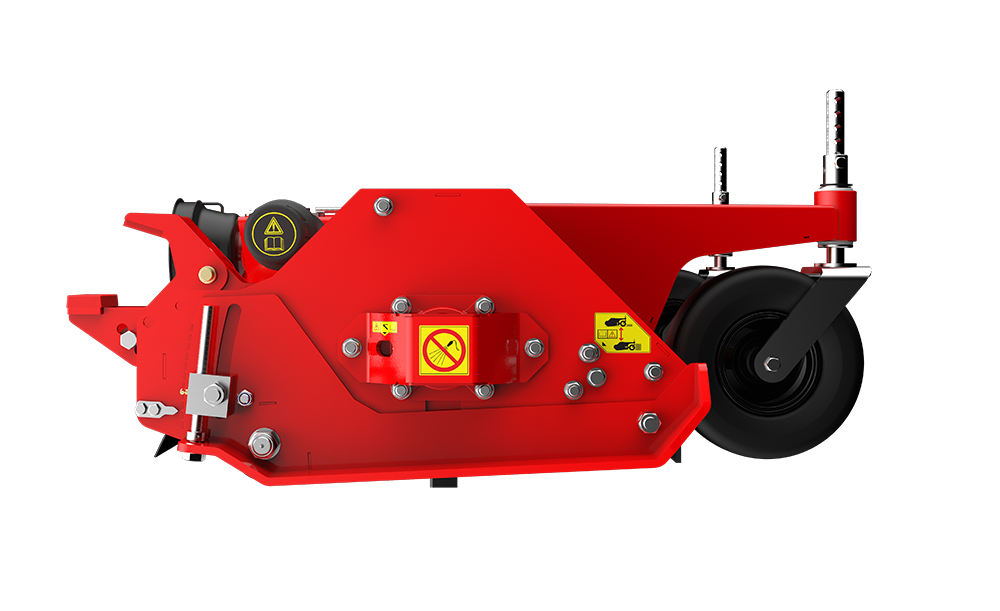

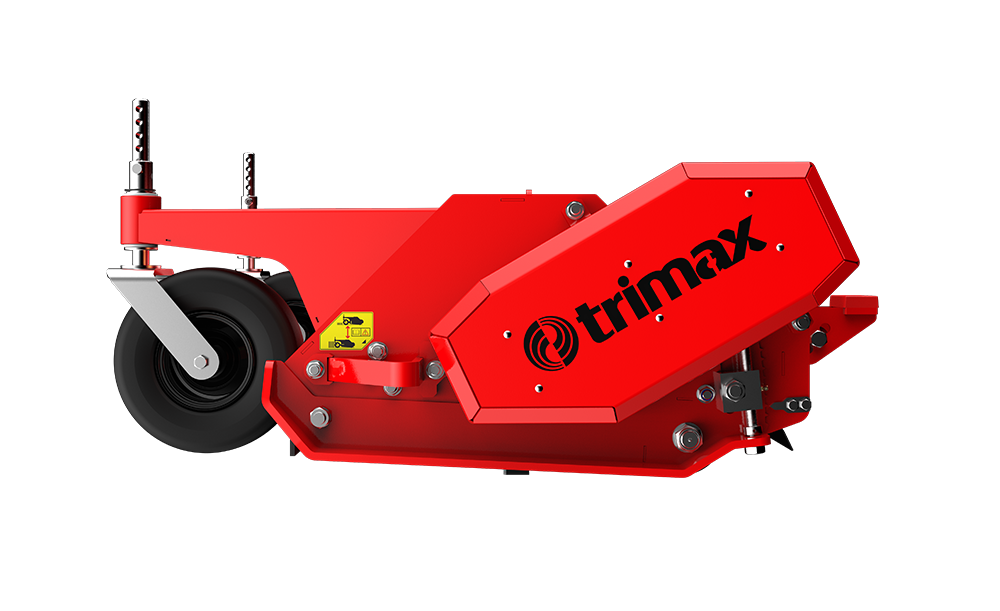

Front Castor Wheels
Front semi-pneumatic wheels allow the FlailDek S4 to follow contours independently from the tractor.
3 Year Warranty
We build mowers that last and they’re supported with a 3-year industry-leading warranty.
FlailDek S4 Options.
Unique Mow to Mulch Converter Flap
Change the position of the converter flap to suit your application. Go from versatile mowing to specialised mulching in seconds.
Y Flails
Short, bent blades fitted in pairs that produce a finer cut finish in certain applications.
Scarifying Knives
Long straight blades and the ability to set a negative height of cut for dethatching and scarifying.
Roller Scrapers
Cleans rollers and reduces clumping in wet conditions.
SPECIFICATIONS.
|
Cutting Width |
1.34m (4′ 6″) |
No. of Flails |
28 |
|
Overall Width |
1.57m (5′ 1 3/4″) |
Approx. Weight |
242kg (533 lbs) |
|
Overall Length |
1.08m (3′ 6 3/4″) |
Total Belts |
2 |
|
Overall Height |
0.37m (1′ 2 1/2″) |
Workrate (6kph) |
0.80 hectares/hr |
|
Cut Height Range |
0 – 110mm (0 – 4 3/8″) |
Warranty (Years) |
3 |
|
Cutting Width |
1.51m (5′) |
No. of Flails |
32 |
|
Overall Width |
1.73m (5′ 8 1/8″) |
Approx. Weight |
256kg (564 lbs) |
|
Overall Length |
1.08m (3′ 6 3/4″) |
Total Belts |
2 |
|
Overall Height |
0.44m (1’ 5 1/2”) |
Workrate (6kph) |
0.91 hectares/hr |
|
Cut Height Range |
0 – 110mm (0 – 4 3/8″) |
Warranty (Years) |
3 |
|
Cutting Width |
1.83m (6′) |
No. of Flails |
40 |
|
Overall Width |
2.05m (6′ 8 7/8″) |
Approx. Weight |
283kg (624 lbs) |
|
Overall Length |
1.08m (3′ 6 3/4″) |
Total Belts |
2 |
|
Overall Height |
0.44m (1′ 5 1/2”) |
Workrate (6kph) |
1.10 hectares/hr |
|
Cut Height Range |
0 – 110mm (0 – 4 3/8″) |
Warranty (Years) |
3 |
