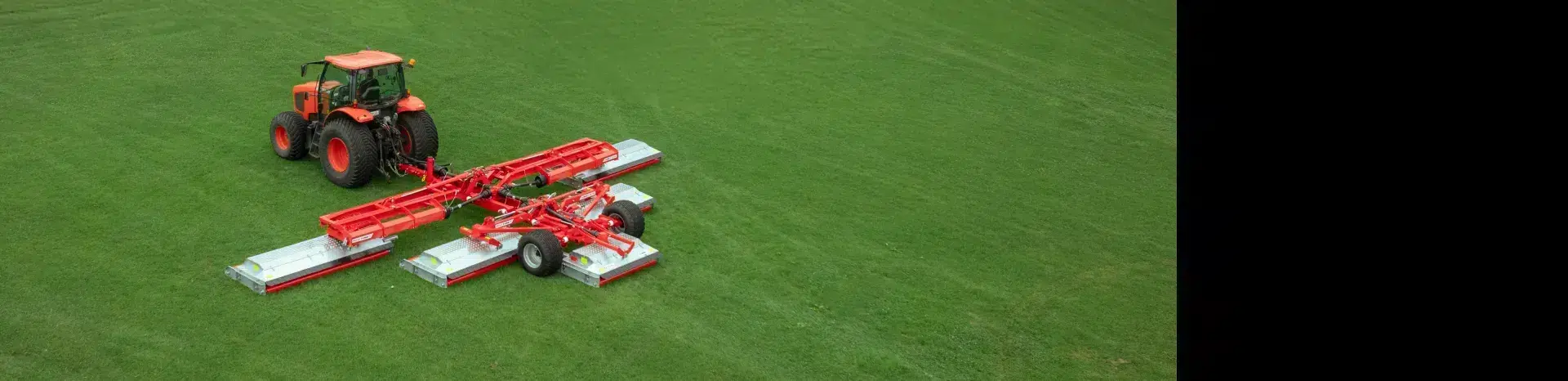

X-WAM

The X-WAM has superior contour-following abilities based on the unique combination of individually floating decks and articulated chassis.

The ultimate in wide area mowing, when quality counts.

With the potential to cut 13 hectares per hour and the ability to perform zero-turns without having to lift any of the mower decks, the X-WAM will increase your productivity and efficiency using only one tractor, one driver, and one mower.

The X-WAM has superior contour-following abilities based on the unique combination of individually floating decks and articulated chassis. Our robust design coupled with our experienced service and support network ensures minimum downtime and increased productivity.

Talk to us today about the capabilities of X-WAM in your environment.

X-WAM Features.

The below features come as standard on all X-WAM mowers:

LOCTEK ROLLER BEARING RETENTION SYSTEM

A stubless roller retention system for vastly improved alignment, bearing life and replacement ease.

LOW MAINTENANCE

All moving surfaces have long life synthetic bushes, or greasable bearings and remote grease points.

RAPIDSET HEIGHT ADJUSTMENT

Clearly displayed cut height indicators allow for simple and easy alteration or resetting of cut heights.

STEADFAST SPINDLES

With no spindle greasing required maintenance is extremely low and productivity enhanced.

FULL HYDRAULIC OPERATION

The X-WAM uses full hydraulic operation for deck retraction into road transport mode.

ULTIMATE CONTOUR-FOLLOWING

Contour-following is compromised when decks are over 10′ wide. The X-WAM features multiple smaller decks for superior cut quality.

WHEELS RUN ON CUT GRASS

The rear deck is located between the transport wheels so grass is not flattened prior to mowing.

3 YEAR WARRANTY

We build mowers that last and they’re supported with a 3 year industry leading warranty.

LAZERBLADEZ

Achieves a superior cut and finish and are more cost efficient than cylinder reels or solid blade beams.

IN-CAB UNLOCK SYSTEM

Unlock the mower side decks’ transport lock from the convenience of the tractor seat using a release rope.​.

TURF TYRE

Trimax turf tyres help distribute the weight of the mower for less ground disturbance.

X-WAM Options.

Quattro Blade System

QUATTRO BLADE SYSTEM

This system adds 2 more blades to each spindle (2 flat & 2 upturned) for a finer cut on warm season grasses.

Anti-Bounce Skids Red

NEXABLADES

Scientifically designed for high-end turf giving a superior cut and spread when it matters most.

Electric Unlock

ELECTRIC UNLOCK

Replaces the standard in-cab transport lock release rope with an electric actuator. This is operated by a push-button remote.

Roller Scrapers

ROLLER SCRAPERS

Trimax Helical Scrapers operate with reduced tension but apply a constant pressure across the roller to assist with the cleaning of debris.

Galvanized Options

GALVANIZED

Hot-Dip Galvanizing provides added protection against corrosion. This is especially useful in coastal environments with high salt concentrations and applications with high fertilizer usage.

Anti-Bounce Skids Red

ANTI-BOUNCE SKIDS

Ideal for high speed mowing, Anti-Bounce Skids reduce the ‘scalping’ effect when mowing on uneven turf. Helps to ease the mower over humps between the front and rear rollers. (Currently unavailable on the ProCut 210 model).

SPECIFICATIONS.

X-WAM 1040
Cutting Width 10410 mm (410″) No. of Blade Spindles 19
Overall Width 10540 mm (415″) Approx Weight 4880 kg
Width (transport mode) 2740 mm (108″) Minimum PTO Output 100 hp
Overall Length 5830 mm (229″) Warranty (Years) 3
Cut Height Range 10-110 mm (⅜”-4½”) Workrate (6 kph) 6.25 hectares/hr
